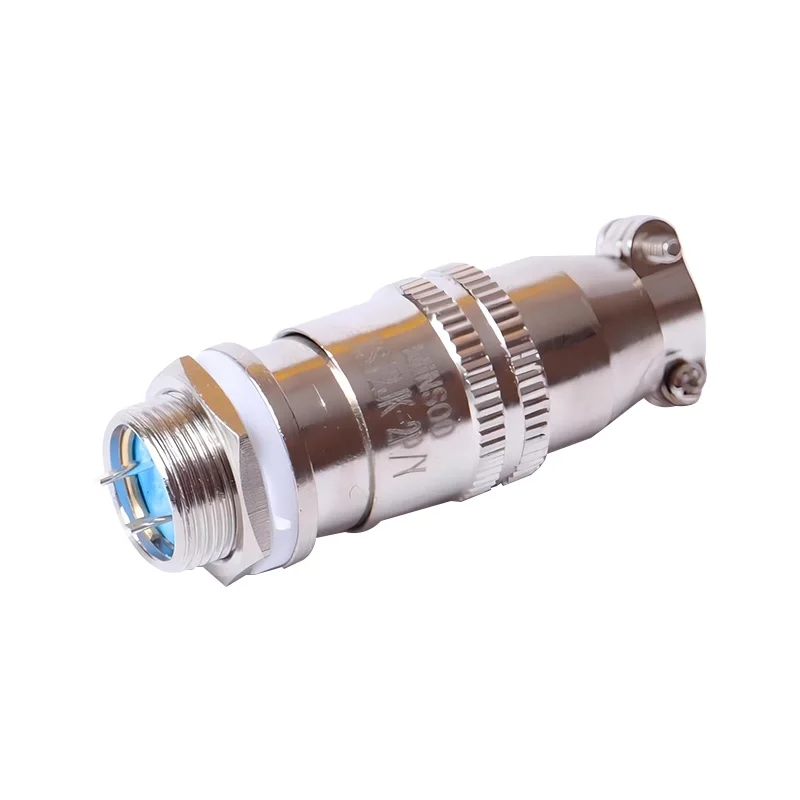

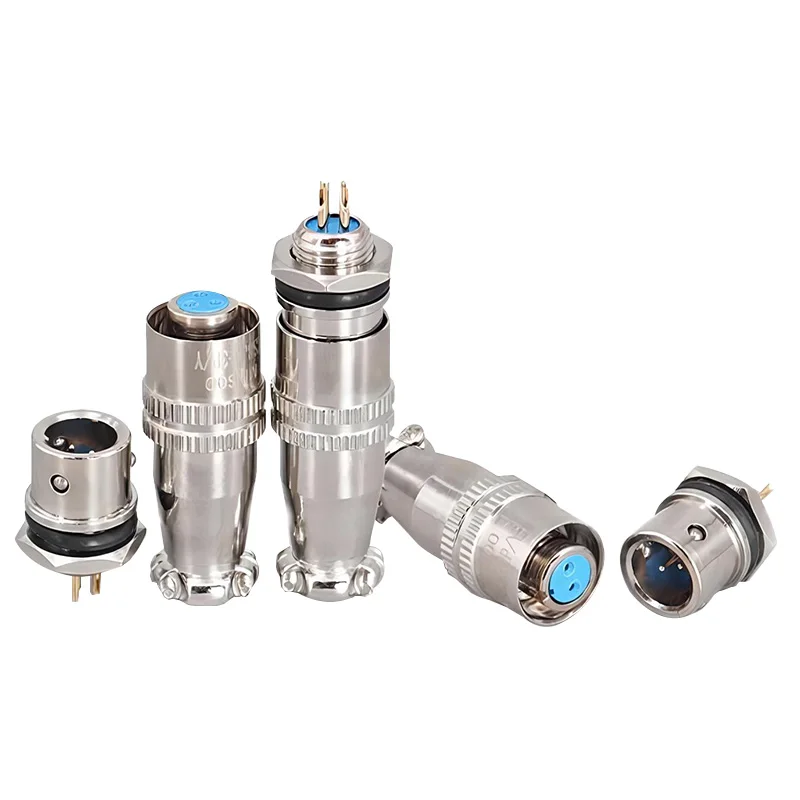

10SETS XS8 XS10 XS12 Aviation Connector Push-Pull Self-Locking Plug & Socket 2/3/4/5/6/7 Pin Gold-Plated Terminal Adapter Set
Price range: $38.34 through $56.90
Aviation Connector — Professional XS8 XS10 XS12 push pull self locking aviation connector set with gold plated terminals. Available in 2/3/4/5/6/7 pin configurations.
- XS8 XS10 XS12 models
- Push pull self locking mechanism
- Gold plated terminals
- 2 to 7 pin configurations
Features: Gold plated contacts secure locking standard. Wholesale pricing for bulk orders. Fast worldwide shipping.
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 10 × 4 cm |
| Voltage | None |
| High-concerned chemical | None |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| Model Number | XS8 XS10 XS12 |

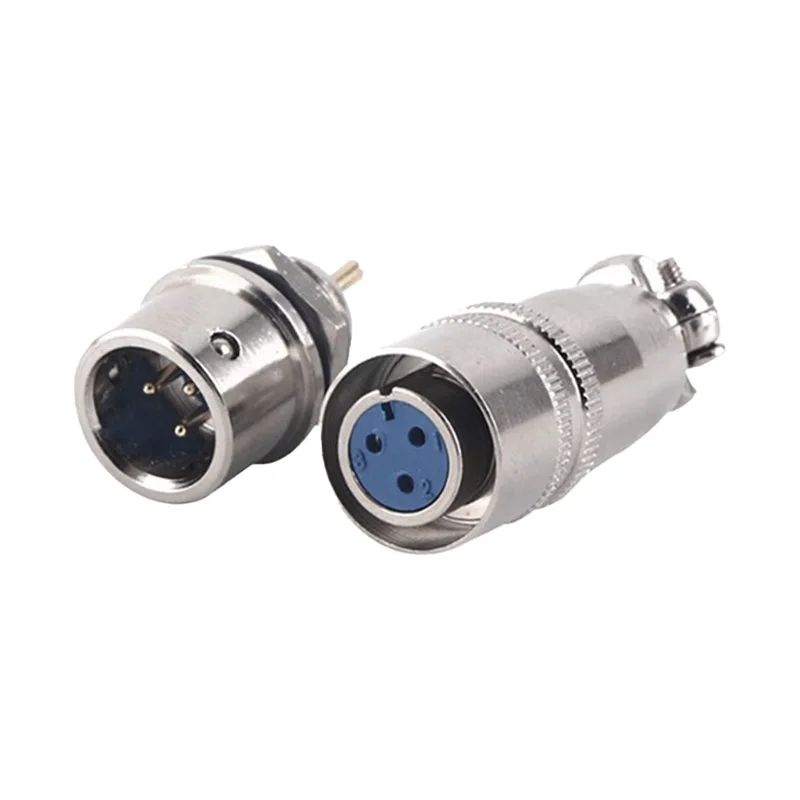

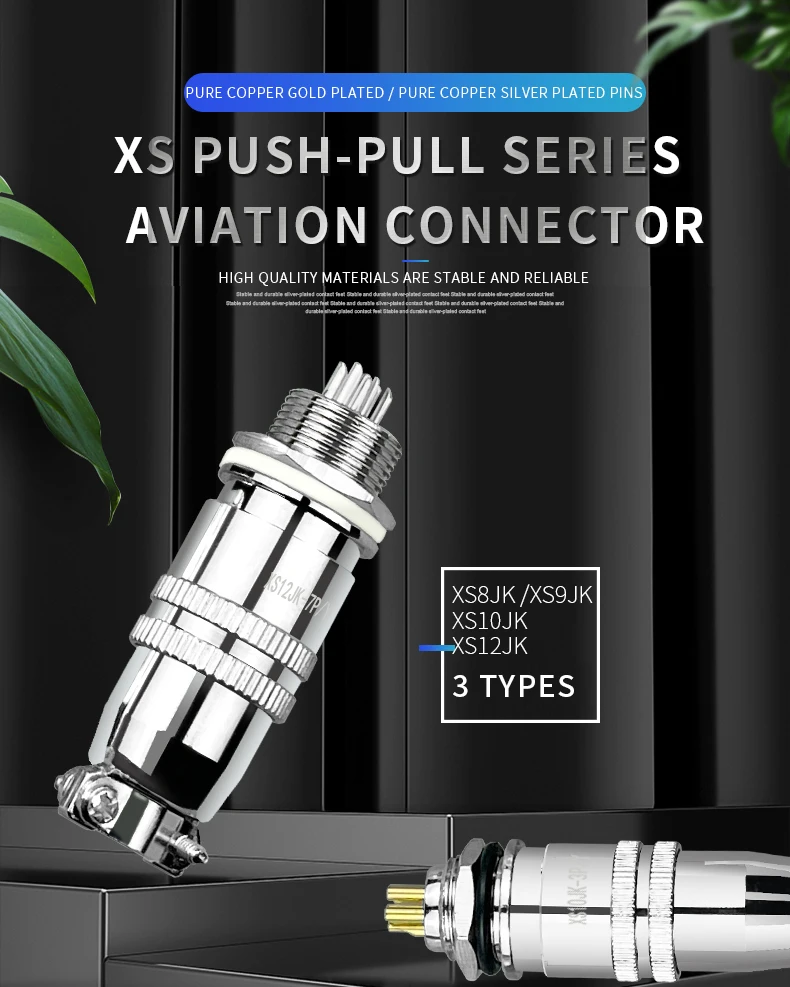

[Heading] XS Series Aviation Connector – Secure Push-Pull Self-Locking Solution
Overview: The XS Series (XS8/XS10/XS12) is a compact and efficient push-pull self-locking connector designed for fast and reliable connections. With its high-precision metal housing and gold-plated pins, it offers stable electrical conductivity even in high-vibration environments. Perfectly suited for miniature sensors, medical equipment, audio devices, and professional power interfaces.
Key Features:
-

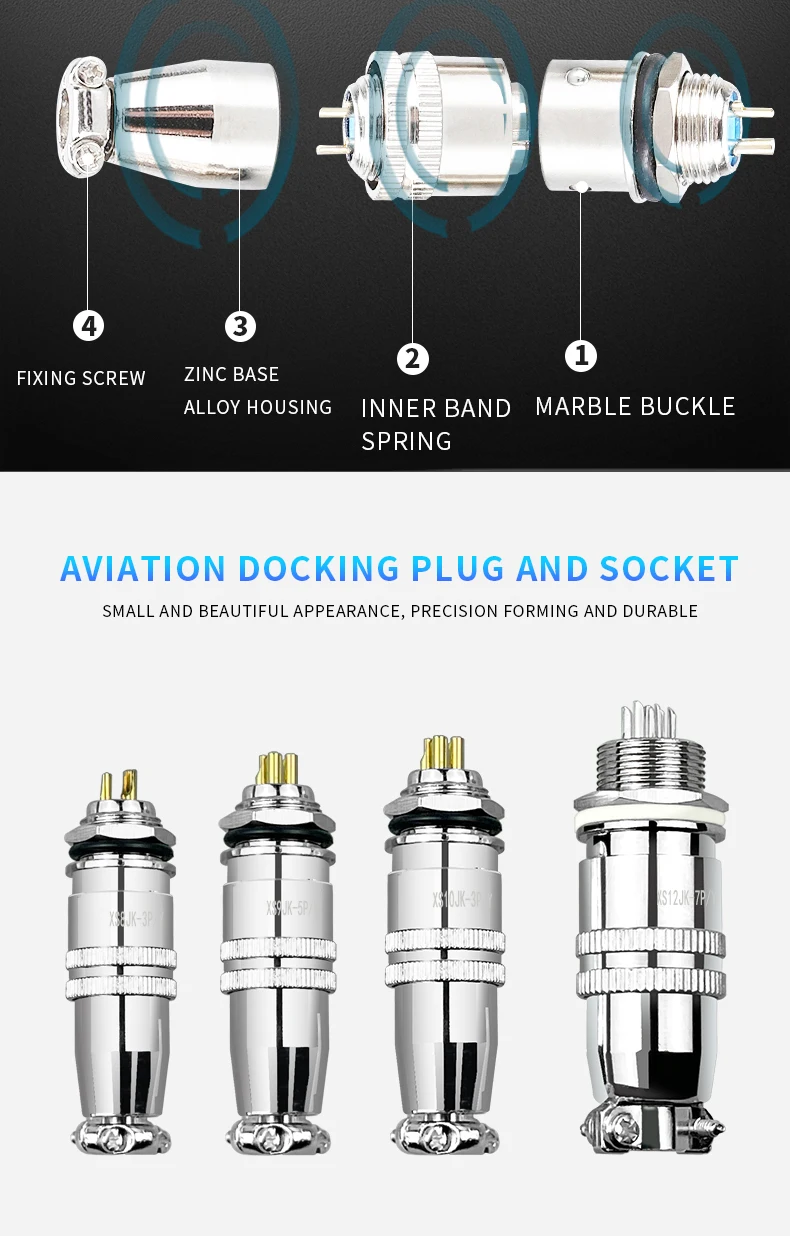

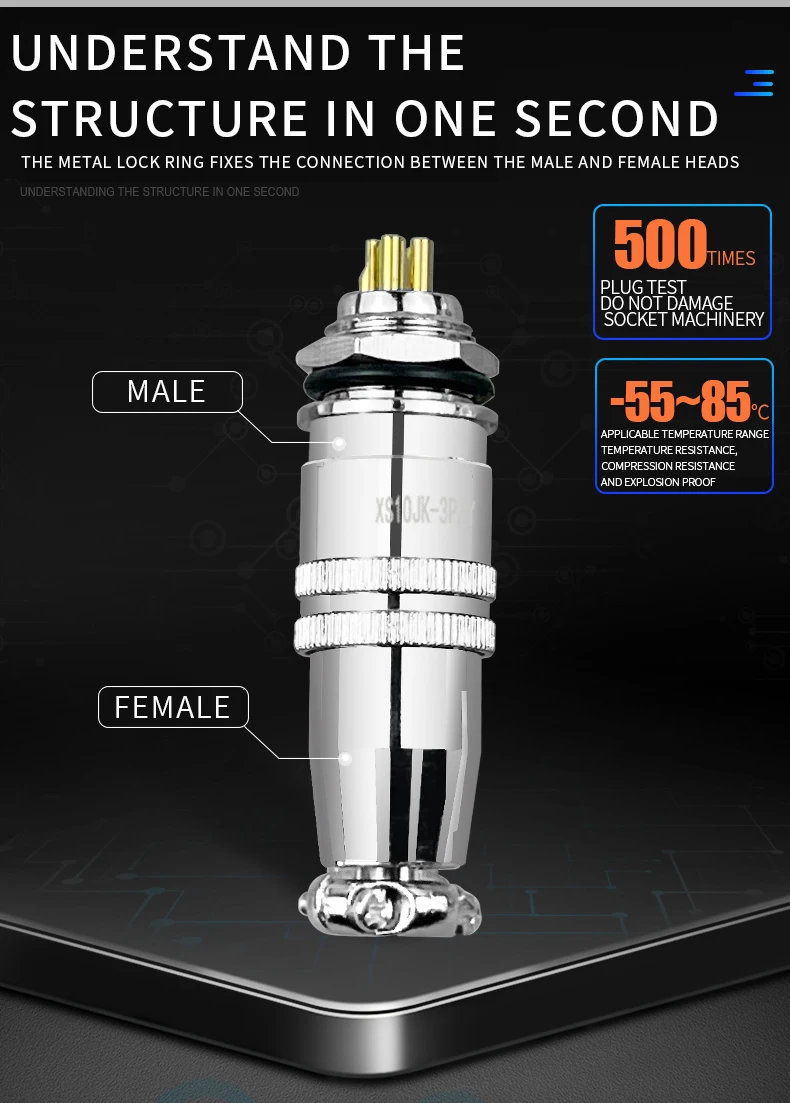

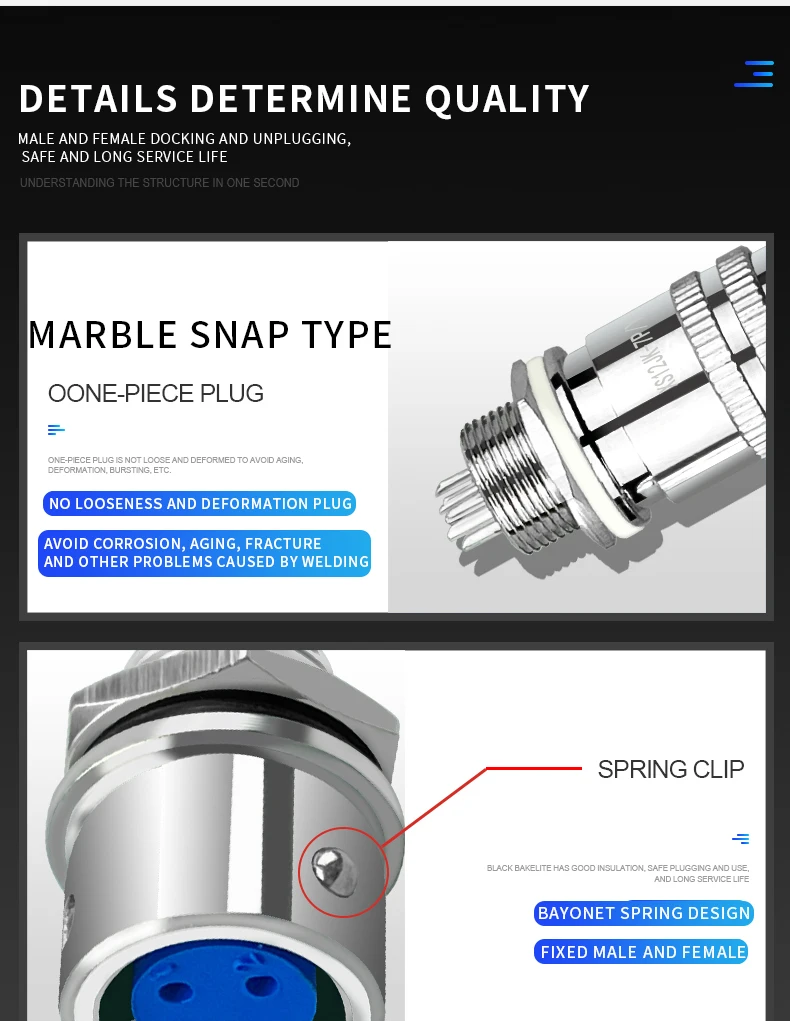

Precision Push-Pull Self-Locking: Features a rapid locking mechanism that ensures a secure connection with a simple push and quick disconnection by pulling the sleeve.
-
Gold-Plated Terminals: High-quality gold plating on the contact pins provides superior conductivity, oxidation resistance, and thousands of mating cycles.
-
Compact Metal Housing: The nickel-plated brass shell offers excellent mechanical protection and a premium industrial look.
-

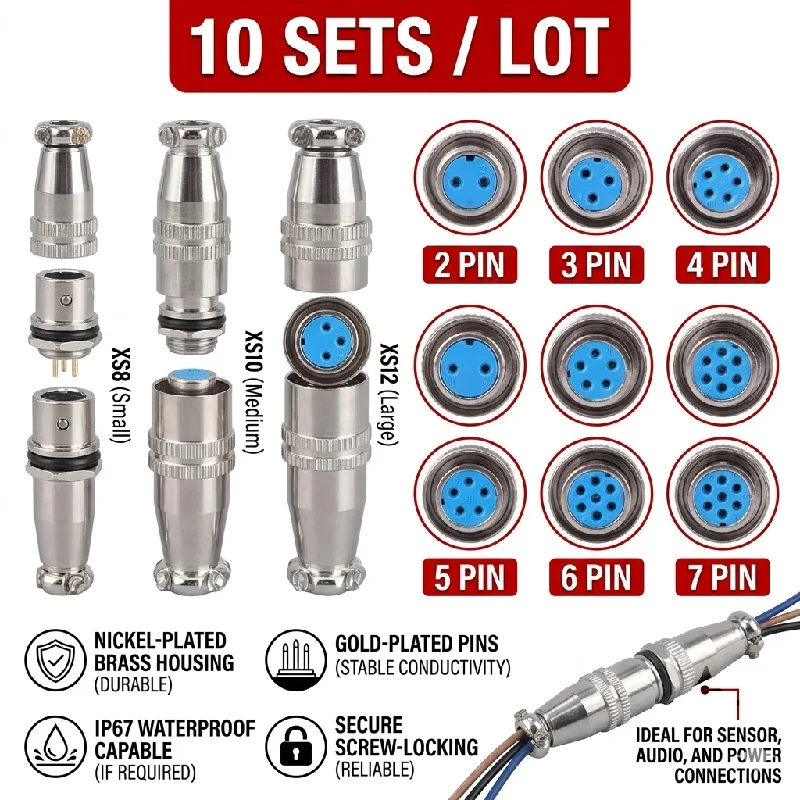

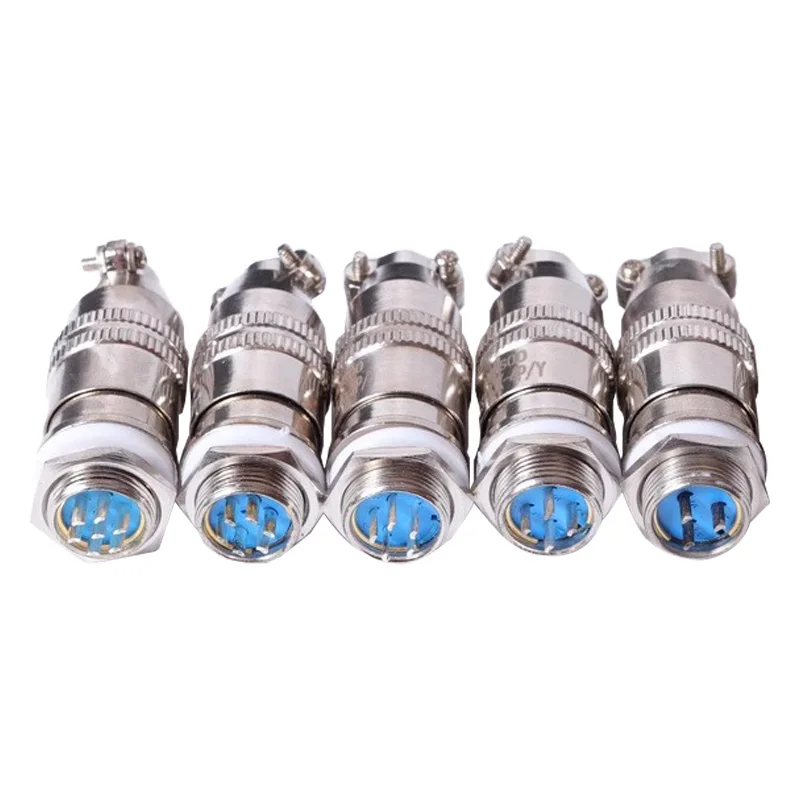

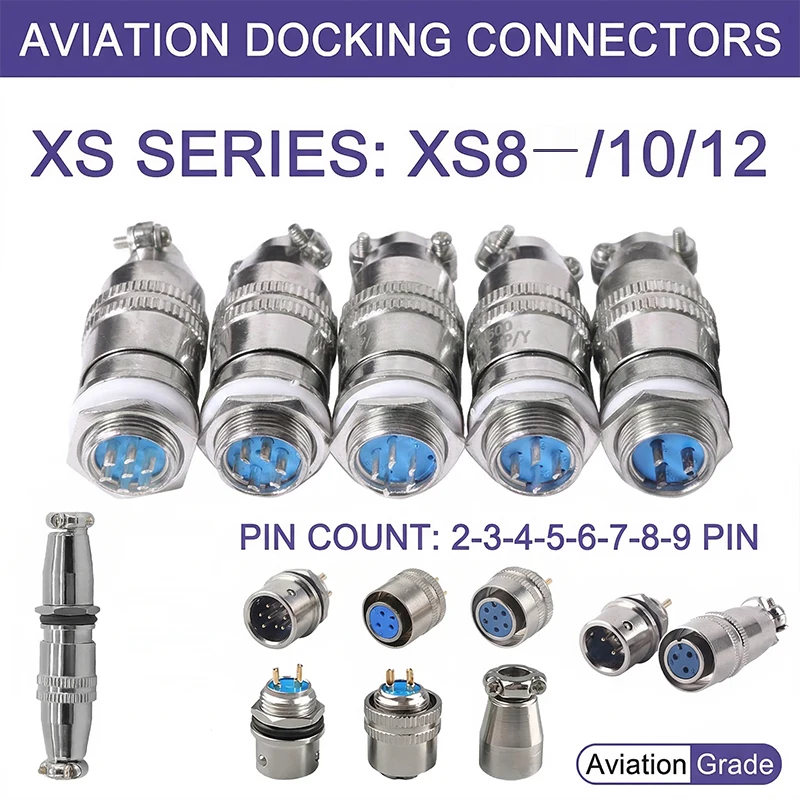

Multiple Sizes & Pins: Available in three shell sizes (XS8, XS10, XS12) and various pin configurations (2 to 7 pins) to meet your exact wiring needs.
-
IP67 Waterproof Capable: Designed to provide basic protection against dust and moisture, making it reliable for indoor and protected outdoor use.
-
Professional Grade: Ideal for high-density electronic packaging where space is limited and reliability is paramount.

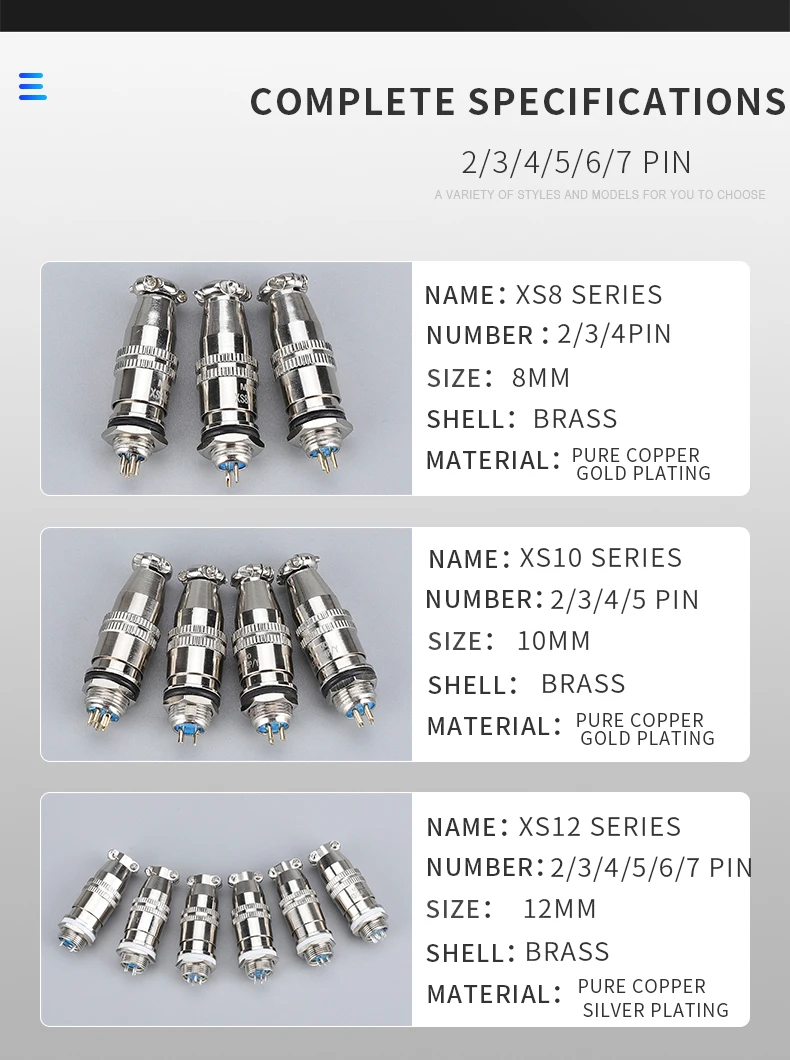

Technical Specifications:
-
Product Series: XS Series (Push-Pull)
-

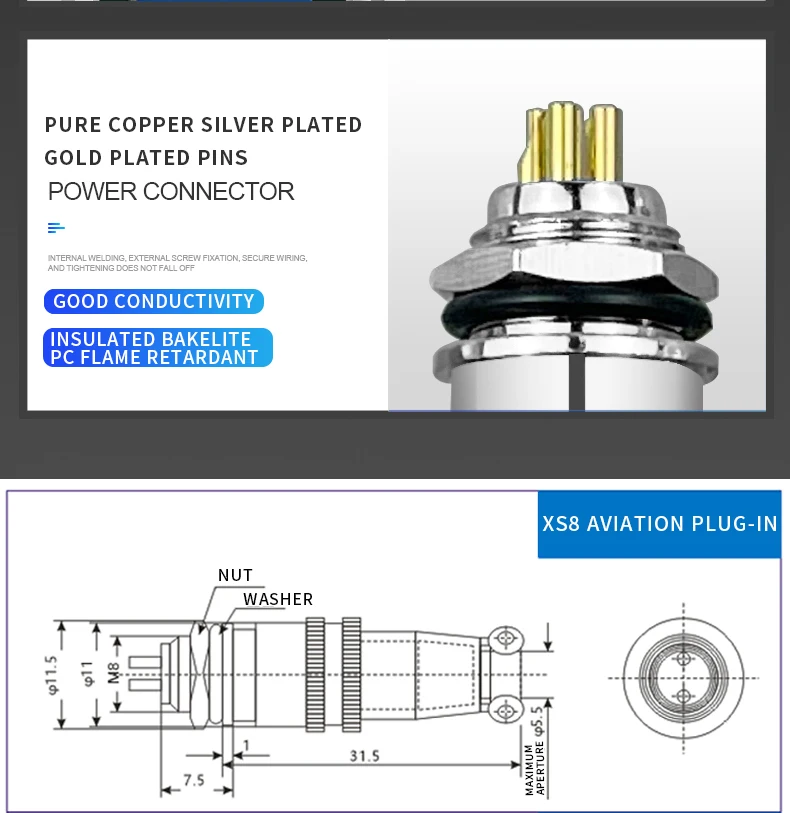

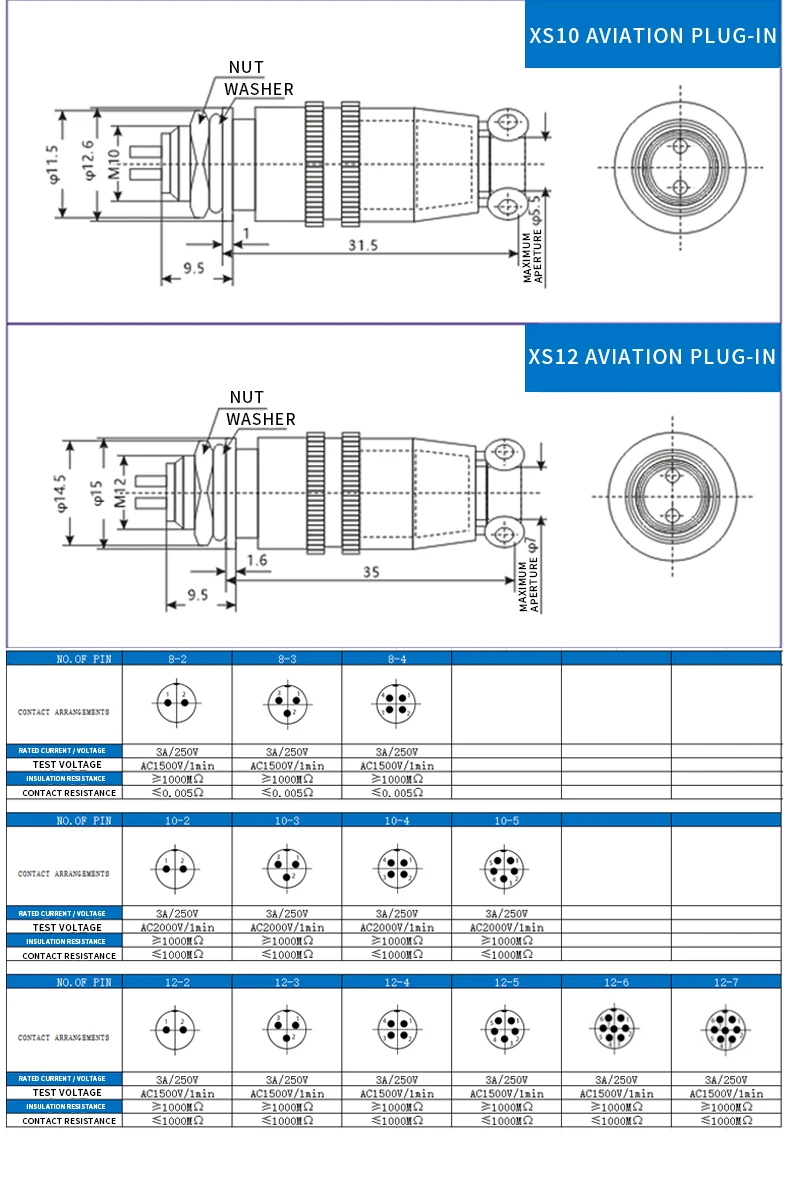

Model Sizes: XS8 (Small) / XS10 (Medium) / XS12 (Large)
-
Pin Count: 2P / 3P / 4P / 5P / 6P / 7P
-
Housing Material: Nickel-Plated Copper Alloy
-
Insulator Material: PPS (Heat resistant up to 260°C)
-
Contact Material: Gold-Plated Copper
-
Rated Current: 3A to 5A (Depending on pin count)
-
Coupling: Push-Pull Self-Locking
Package Includes:
-
10 x Male Plugs
-
10 x Female Panel Mount Sockets (Each set includes 1 Plug and 1 Socket)
Applications: Ideal for signal sensors, industrial cameras, testing equipment, medical devices, audio/video systems, and compact power connections.
Shipping and Delivery
Orders are shipped from Wenzhou, Zhejiang, China. Processing normally takes 1-2 business days after payment confirmation.
- Standard shipping: 7-30 business days. Free standard shipping is available for orders over $50.
- Express shipping: 5-10 business days when available. Cost is calculated by destination and parcel weight.
- Tracking: A tracking number is sent by email after the order has shipped.
- Import duties and taxes: International orders may be subject to customs duties, taxes, or clearance fees. These charges are the buyer's responsibility.
Returns
Returns are accepted within 30 days for eligible unused items in original packaging. Please contact info@elcmall.com before sending any return. Defective or incorrect items are handled according to our Return & Refund Policy.
