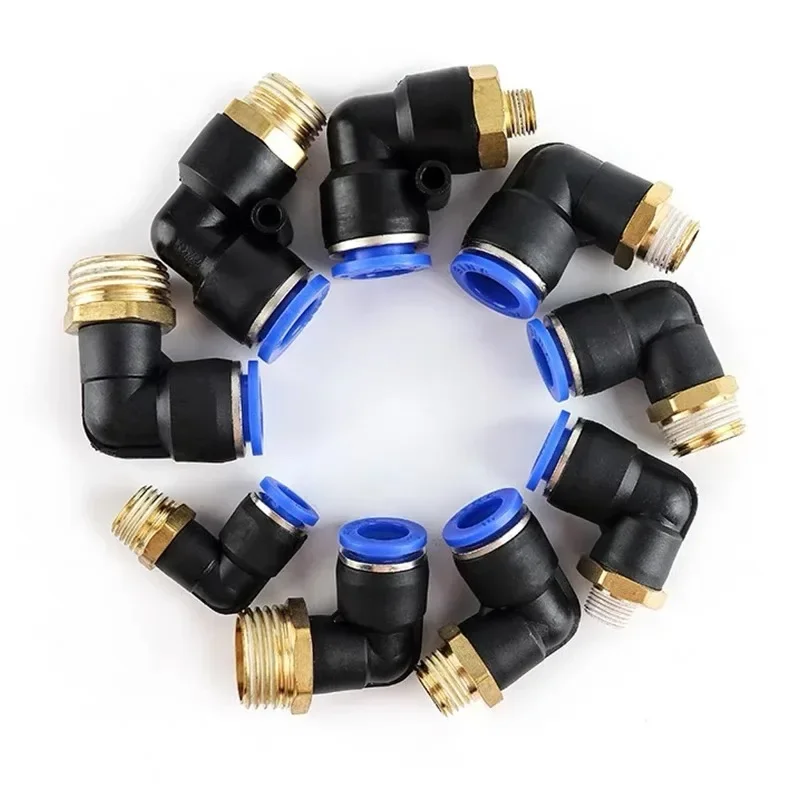

20/50/100PCS Pneumatic Air Connector PL 4mm 6 8 10 12mm Thread 1/8 1/4″ 3/8″ 1/2″ Trachea Elbow Air Fittings Hose Quick Conector
Price range: $5.41 through $199.34
Pneumatic Accessories — High quality electrical component suitable for industrial and commercial applications.
- 100PCS
- 4mm
- 12mm
Features: Durable construction reliable performance standard. Competitive wholesale pricing available for bulk orders. Fast shipping worldwide.
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
| High-concerned chemical | None |
| Type | Fittings, Fittings |

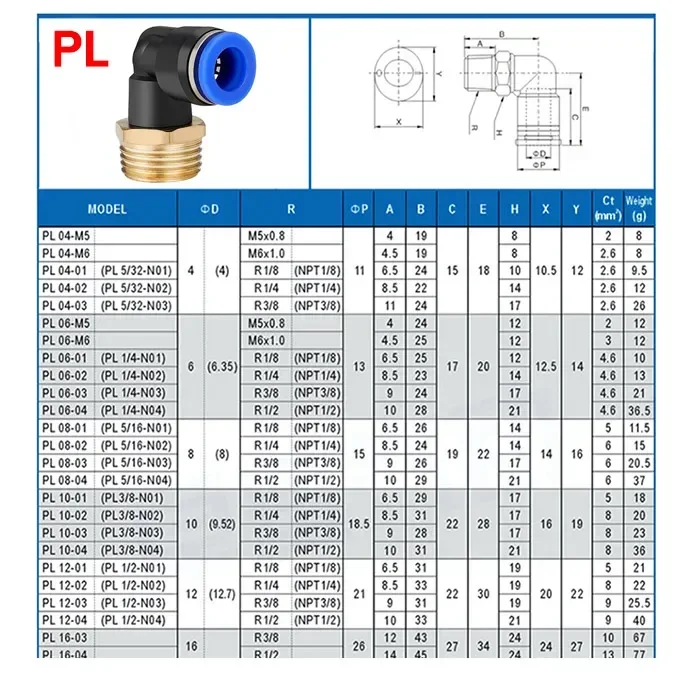

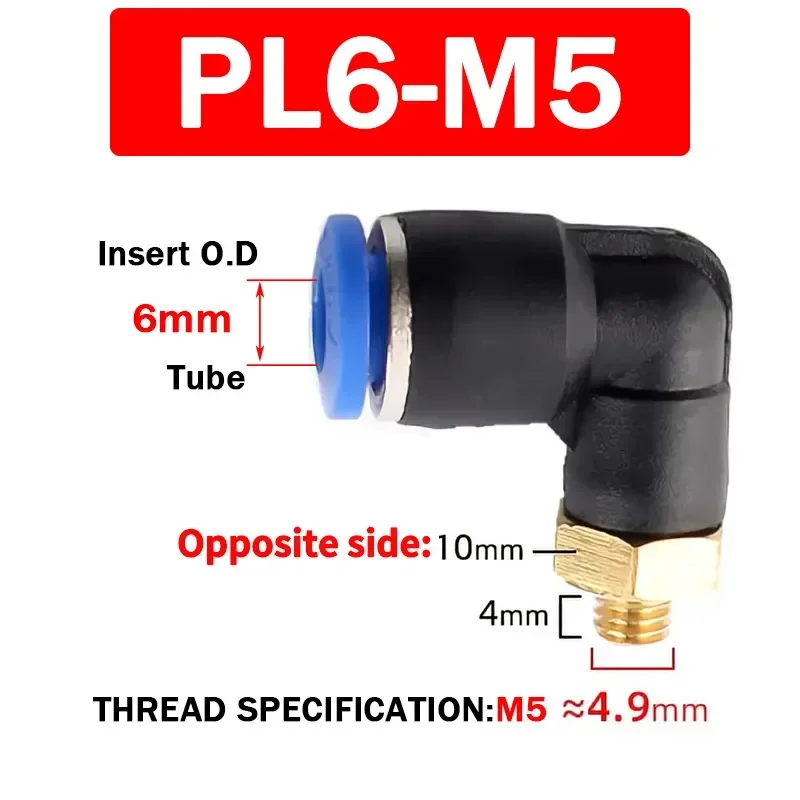

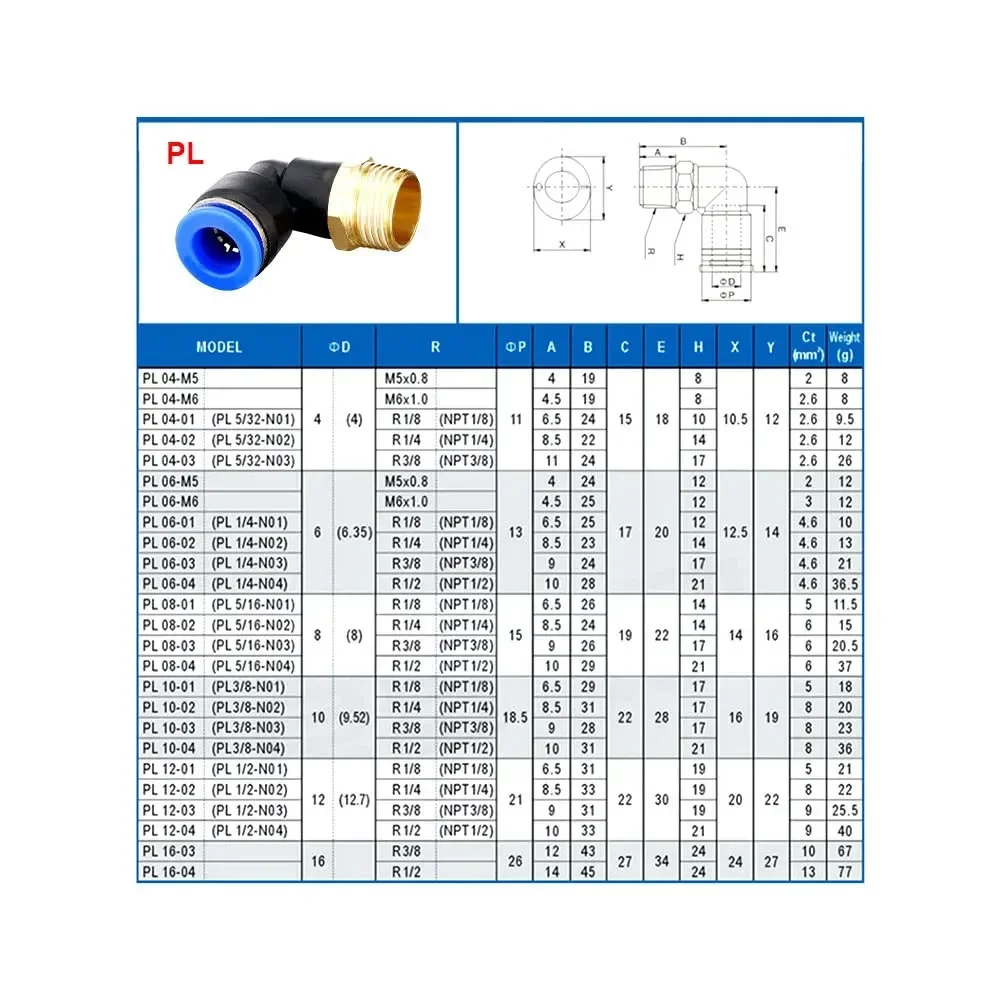

| Model Number | PL4/6/8/10/12-M5/01/02/03/04 |
| The material | Plastic brass |
| Suitable pipe size | Outer diameter 4mm, 6mm, 8mm, 10mm, 12mm hose |
| Thread Size | M5″ 1/8″ 1/4″ 3/8″ 1/2″ |
| Motivity Type | other |

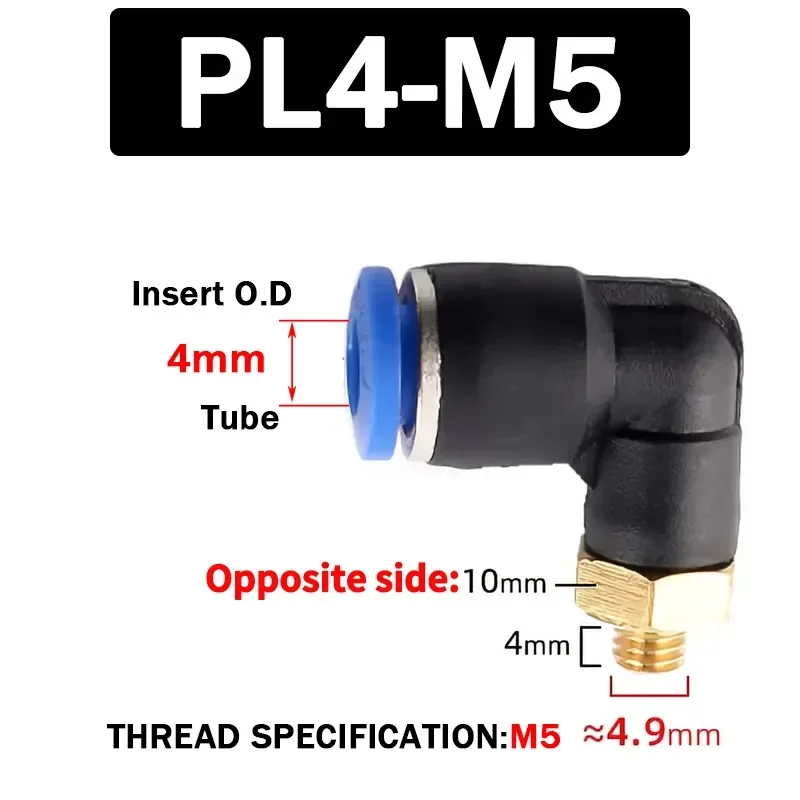

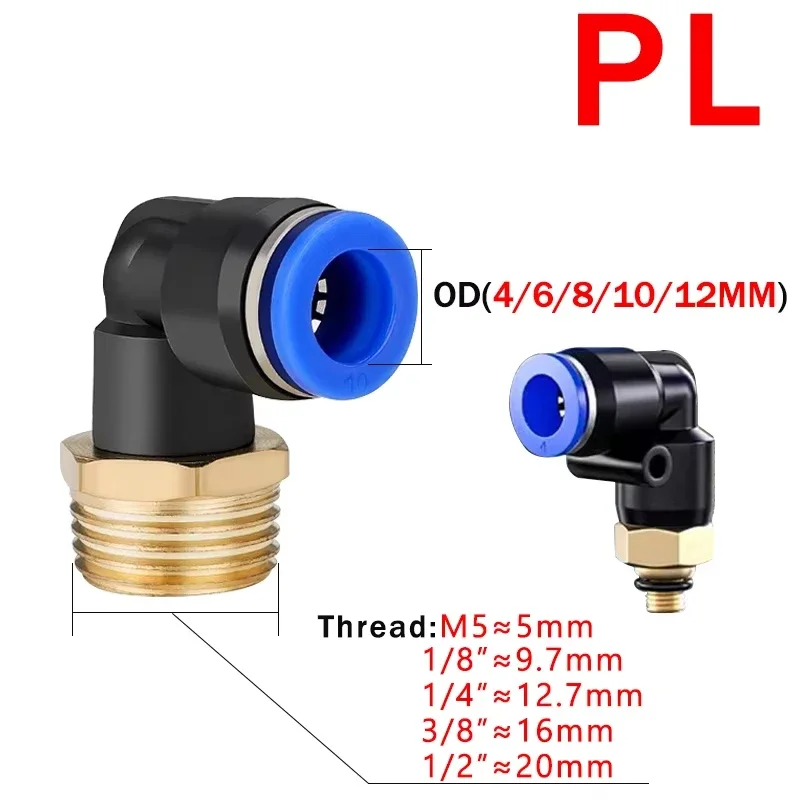

Male Thread Size: M5 " , 1/8", 1/4", 3/8", 1/2"BSPT
Fit For Tube Outer Diameter: 4mm 6mm 8mm 10mm 12mm
Tips:

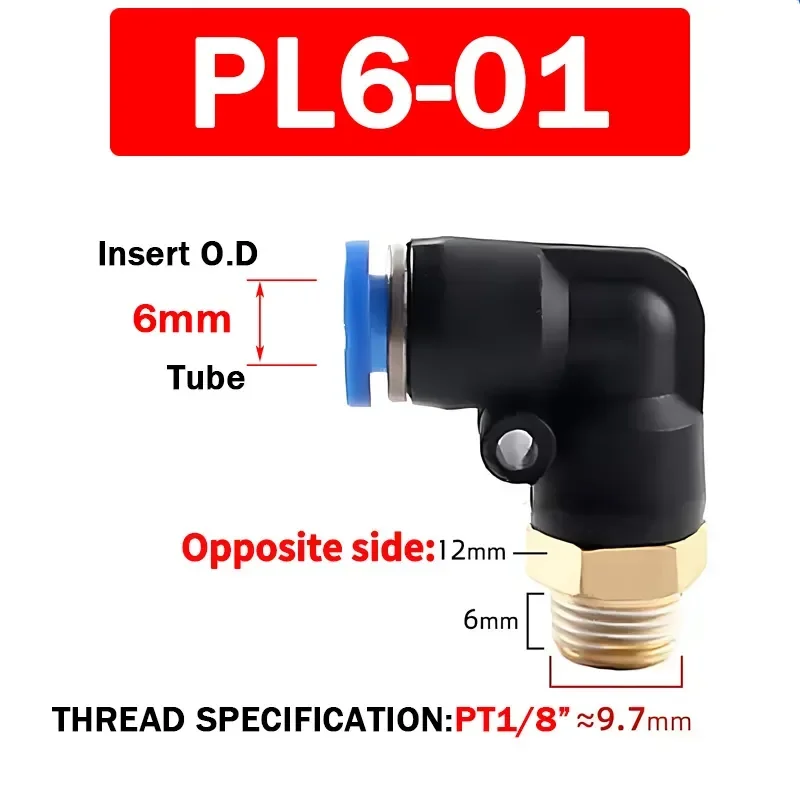

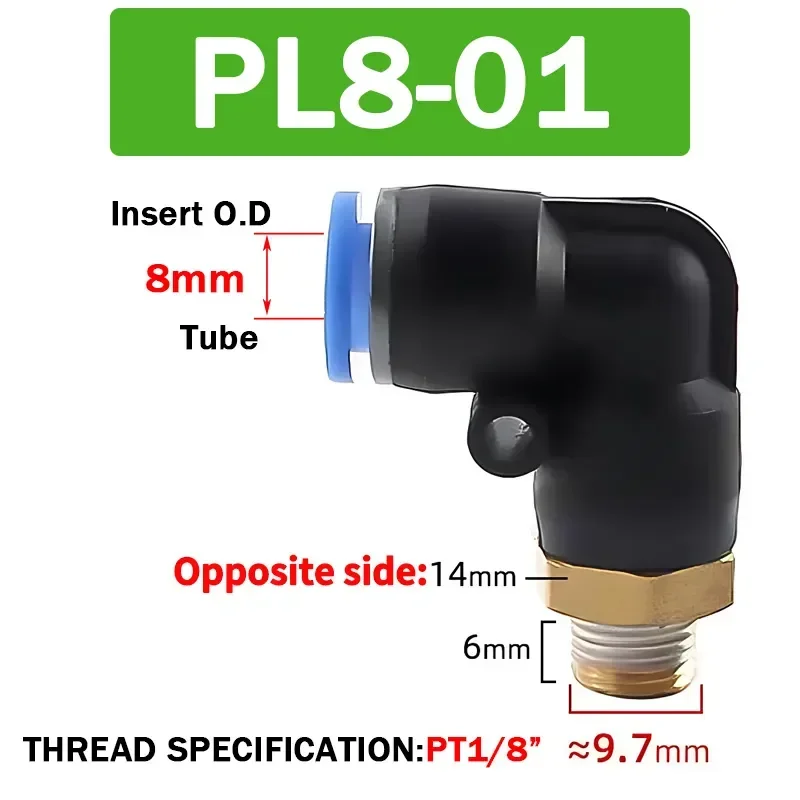

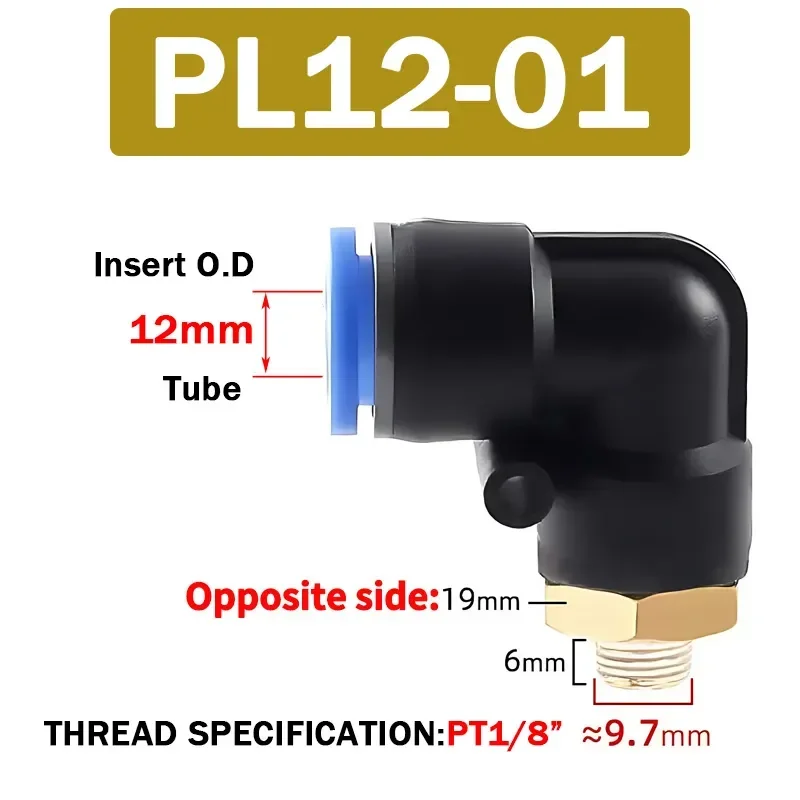

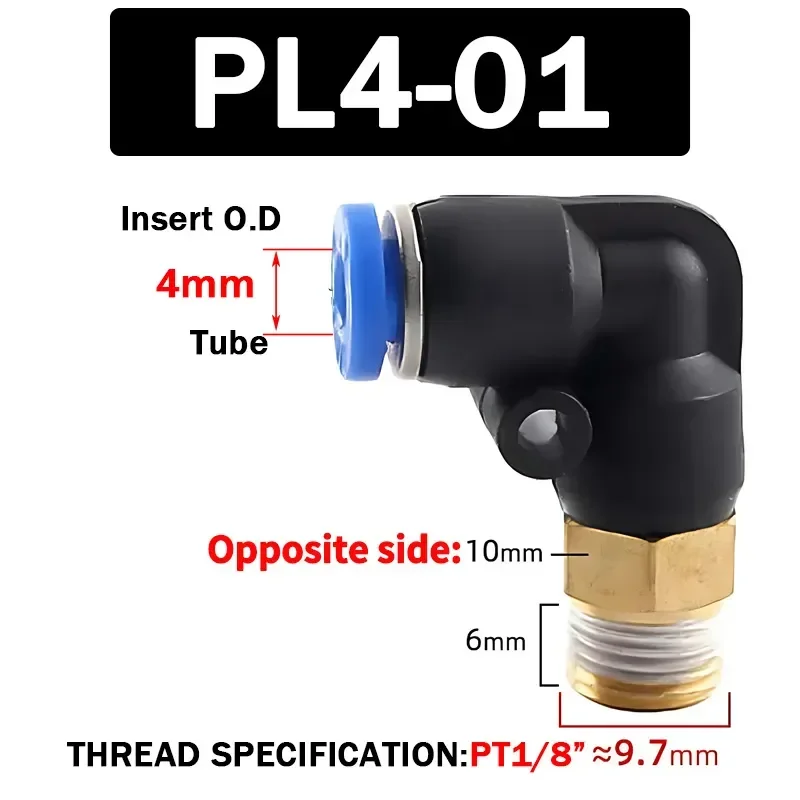

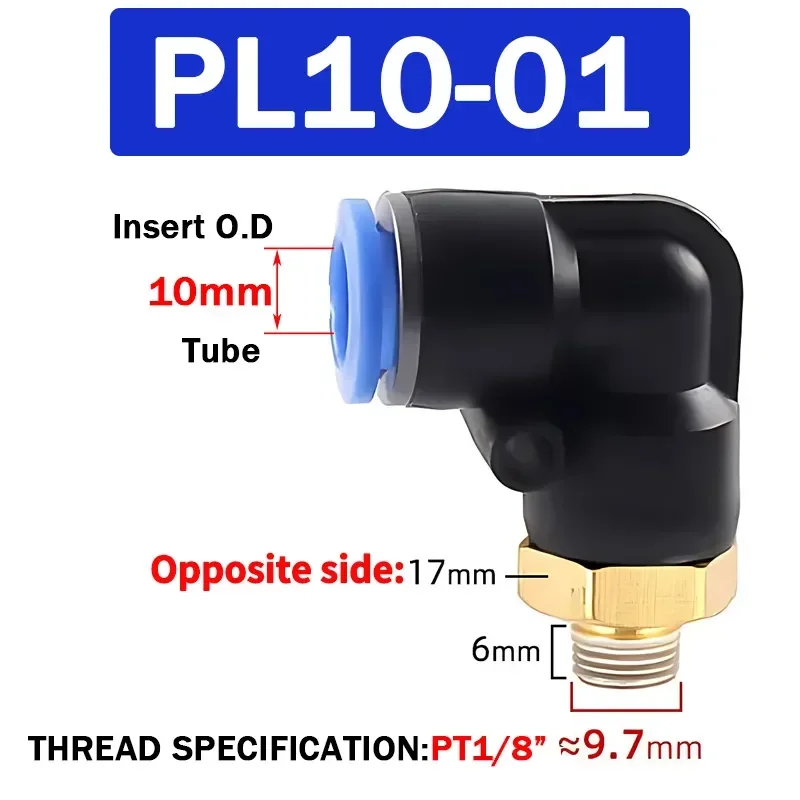

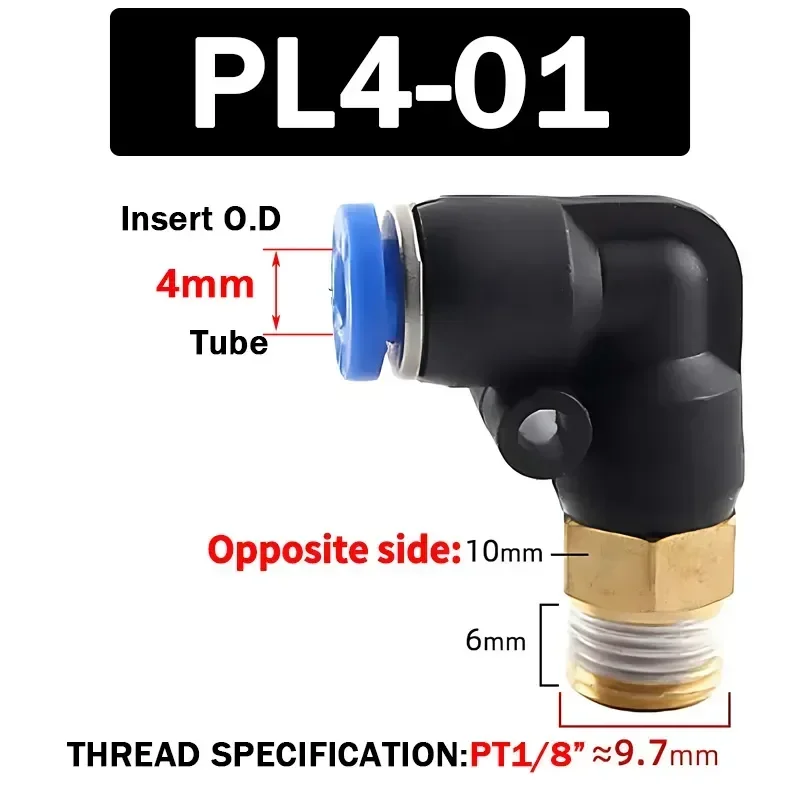

01=1/8" Threaded≈9.7mm

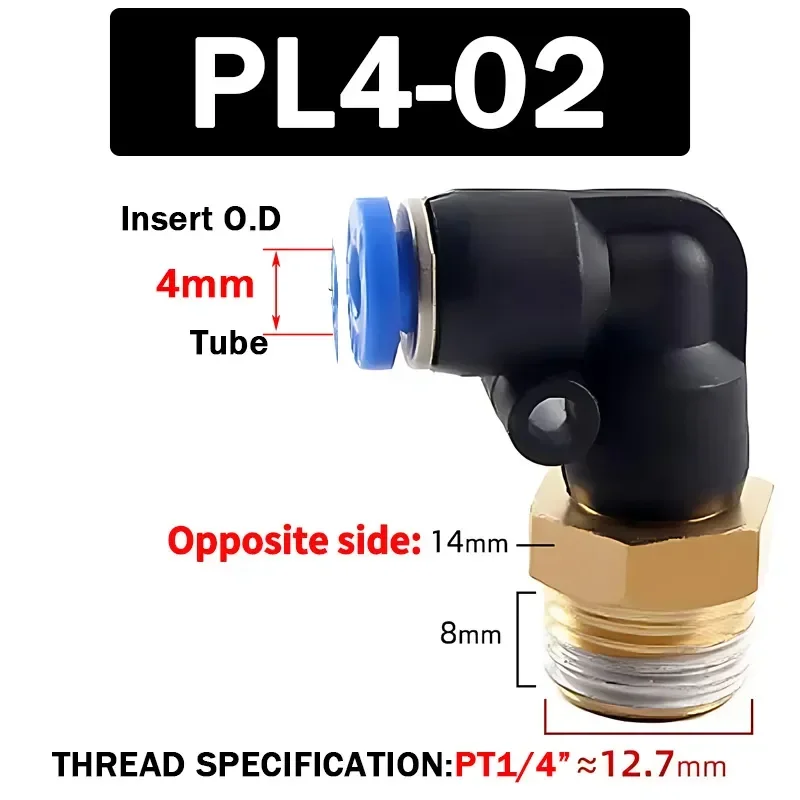

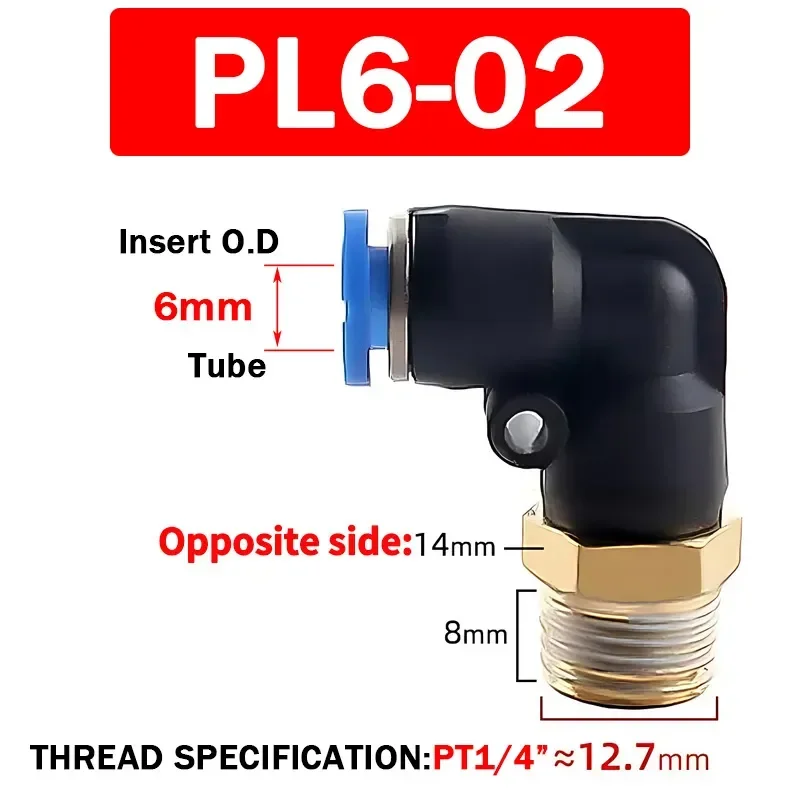

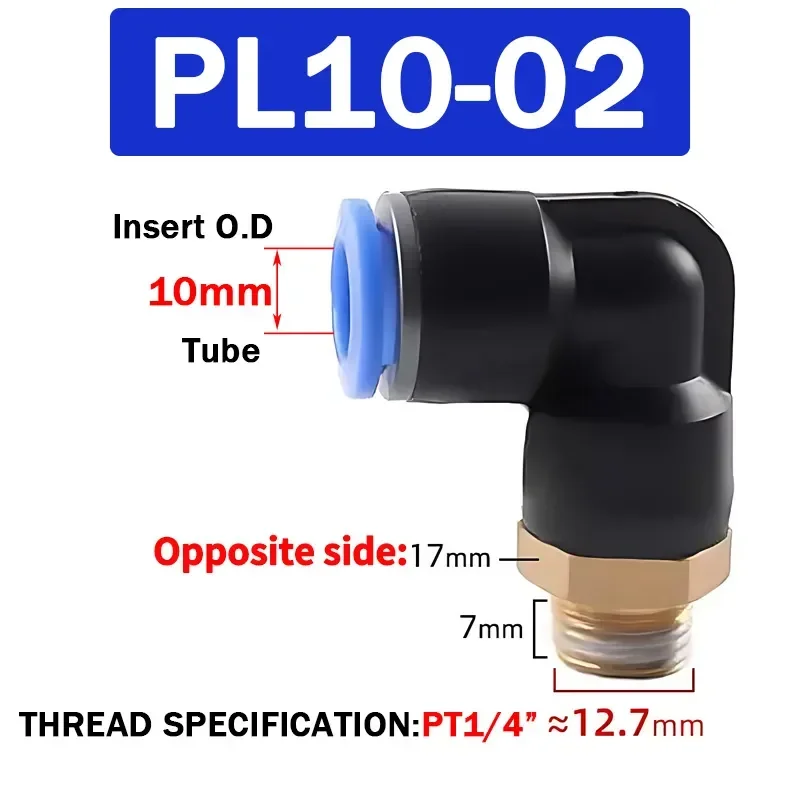

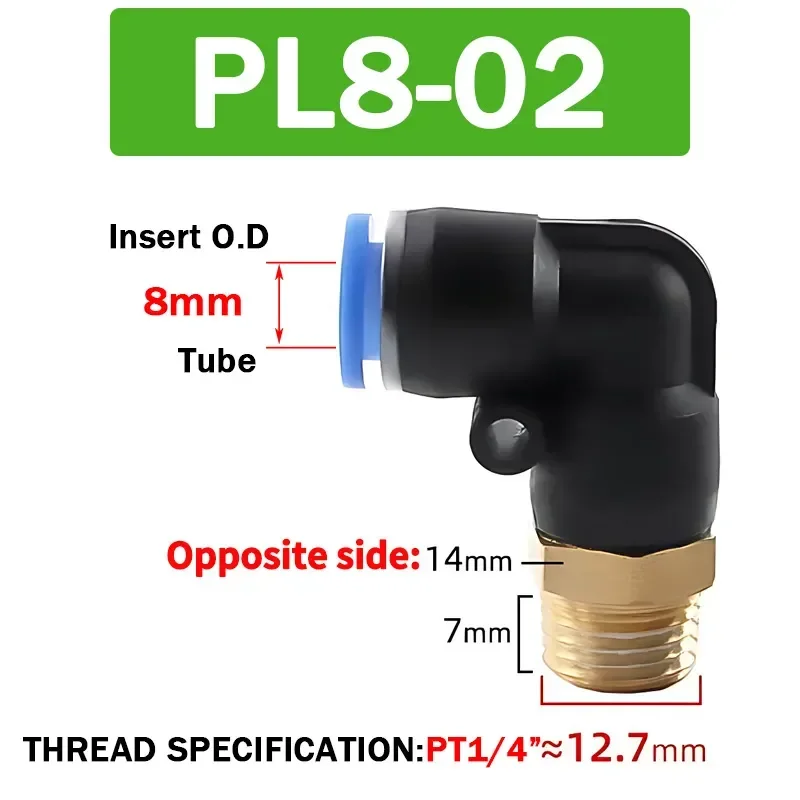

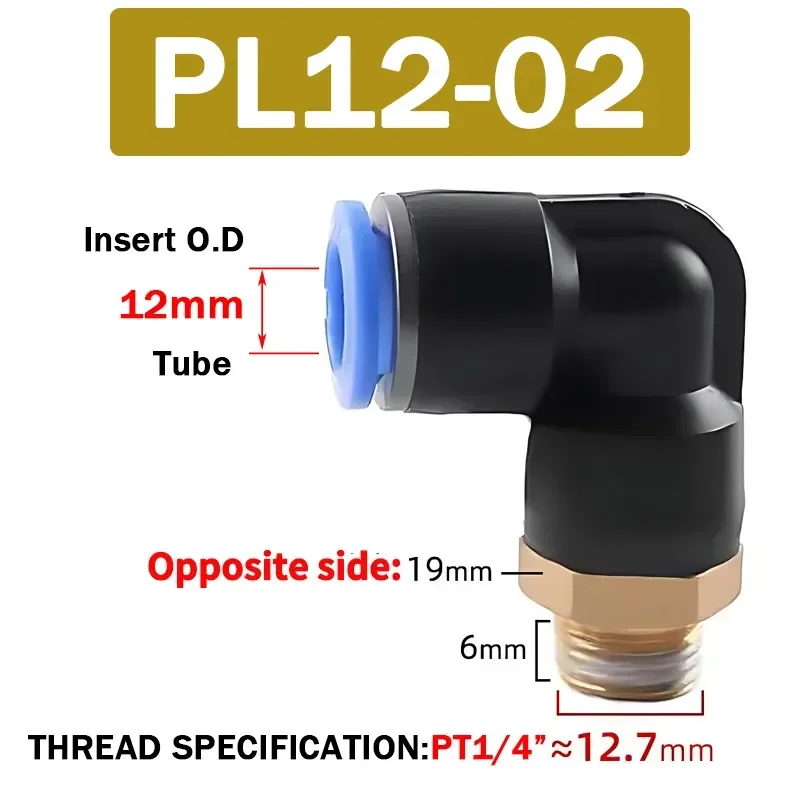

02=1/4" Threaded≈12.7mm

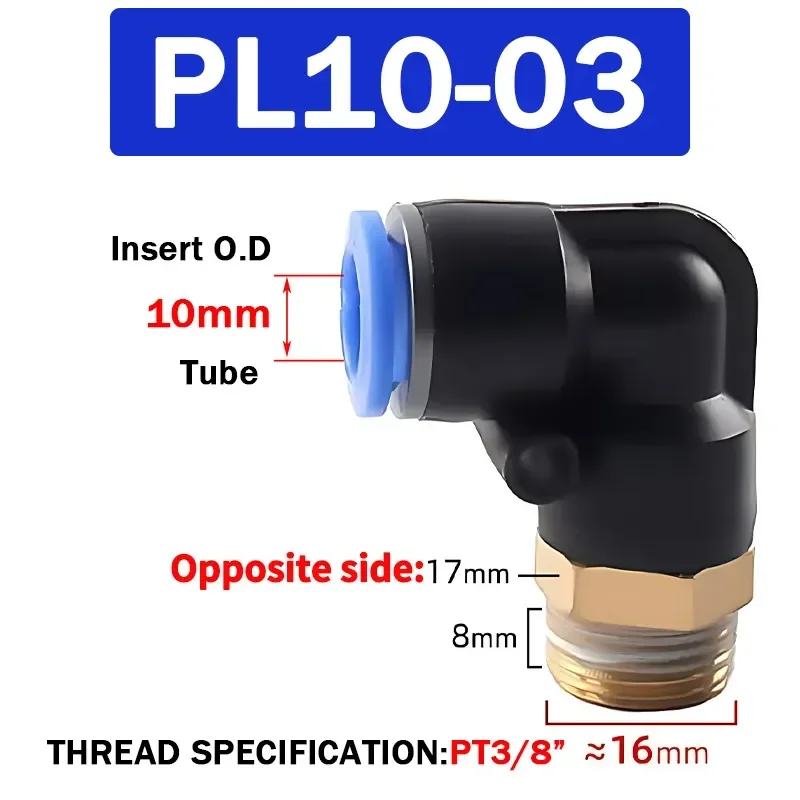

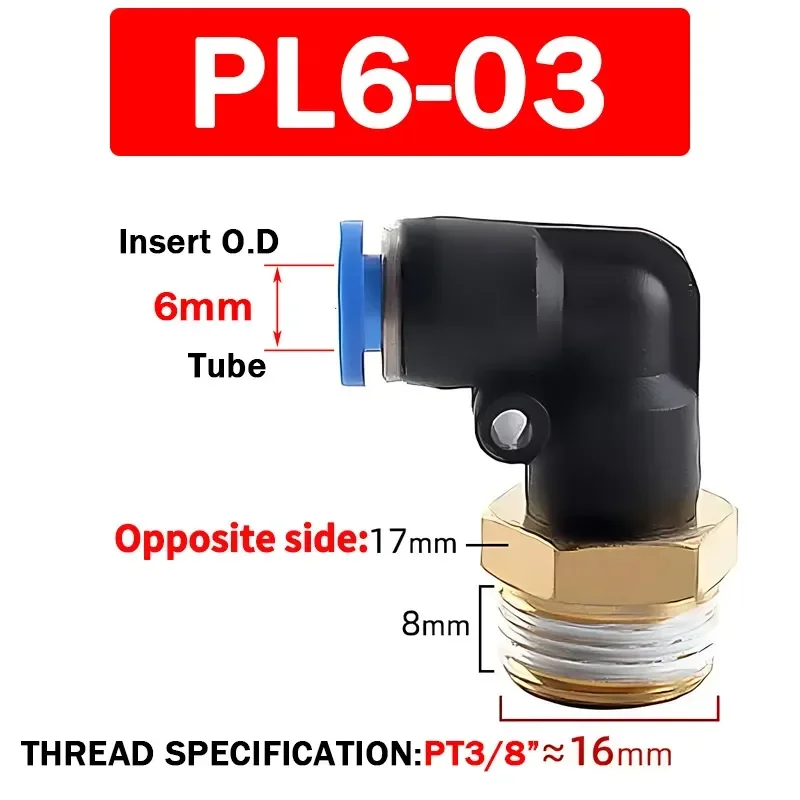

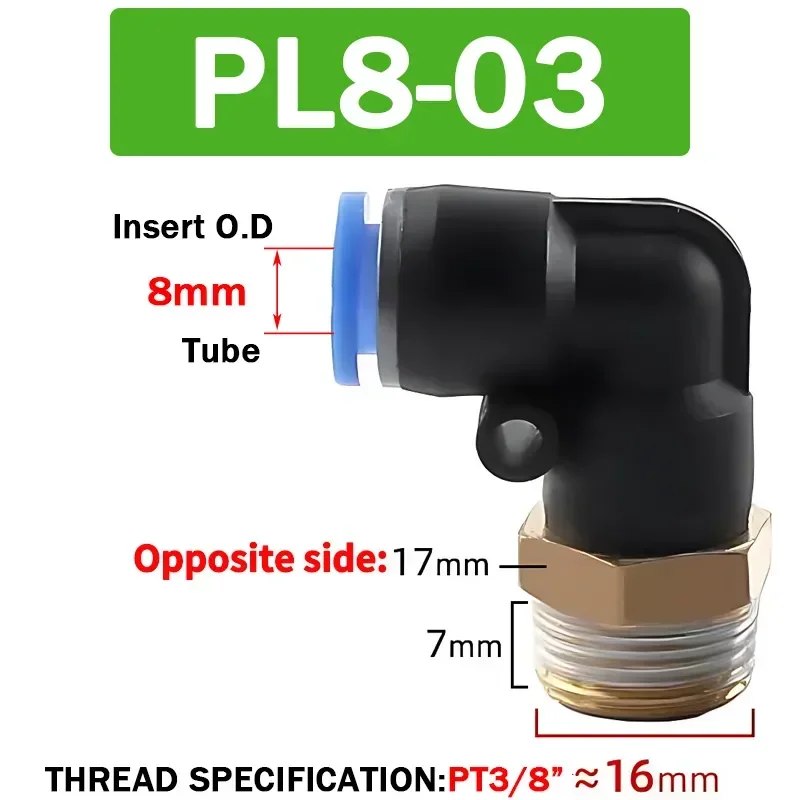

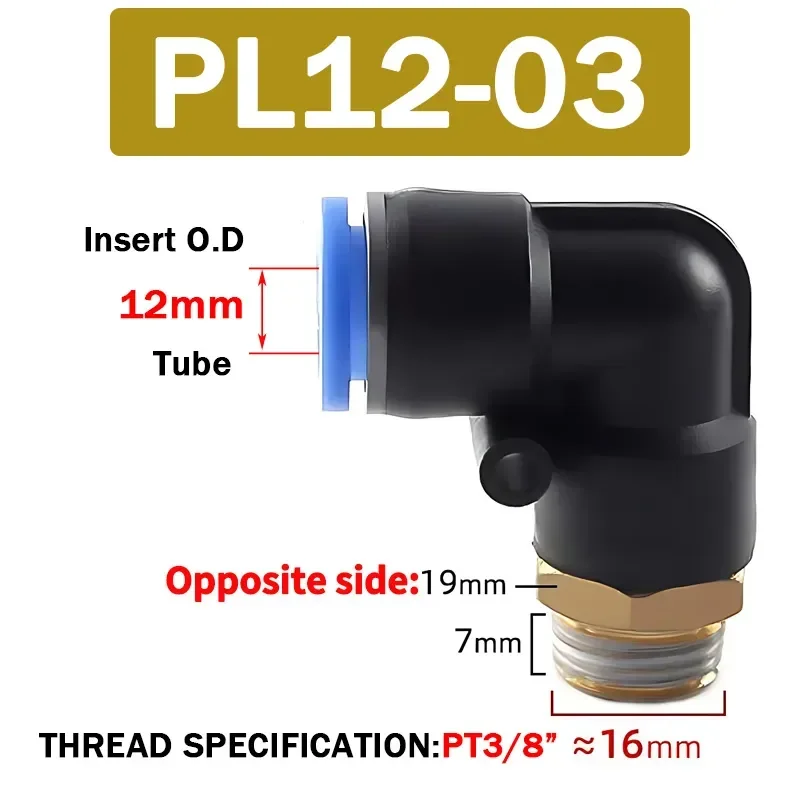

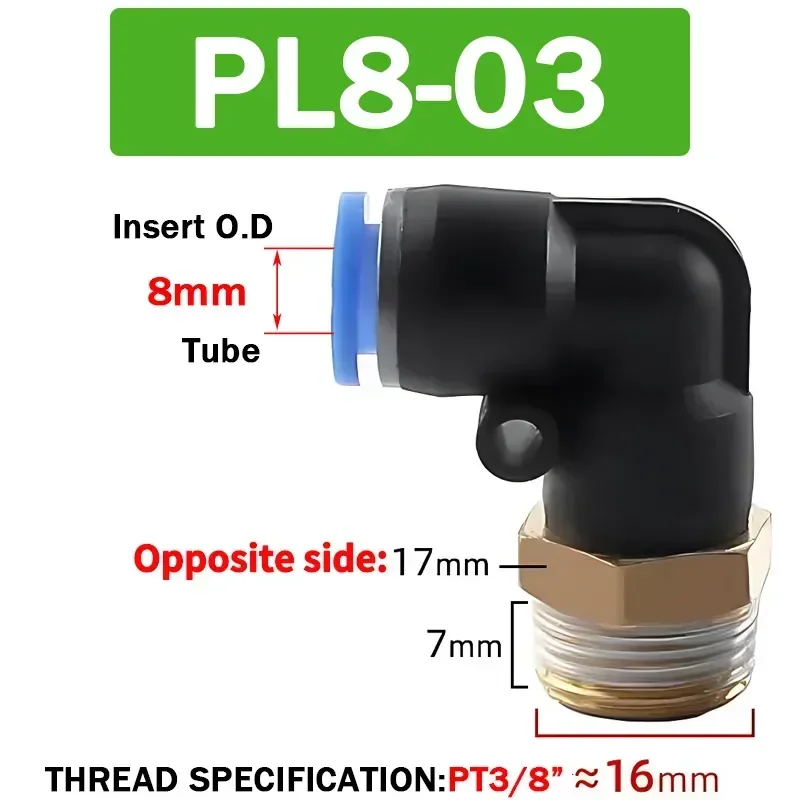

03=3/8" Threaded≈16mm

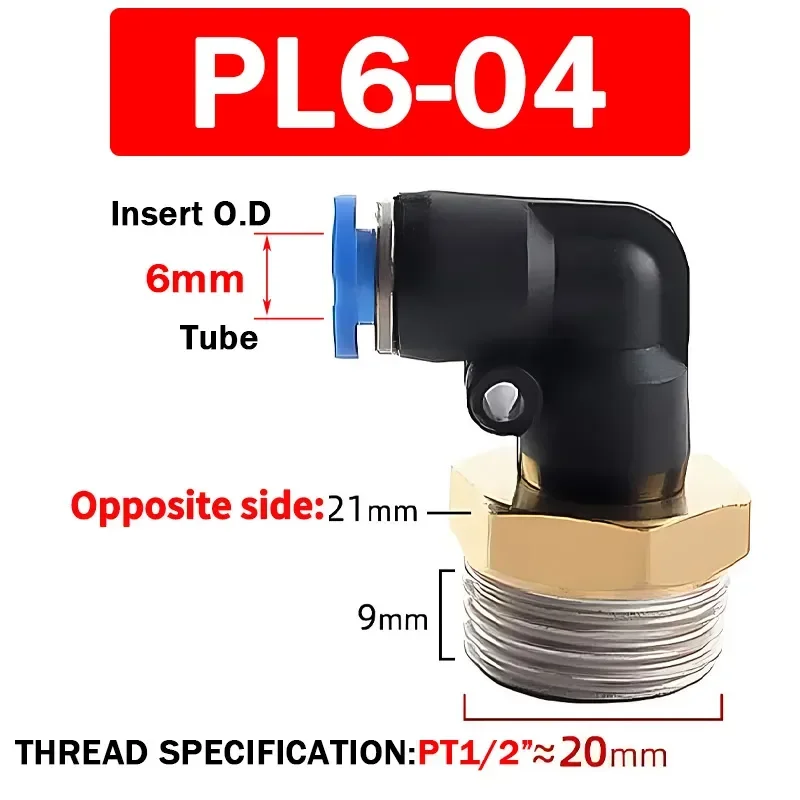

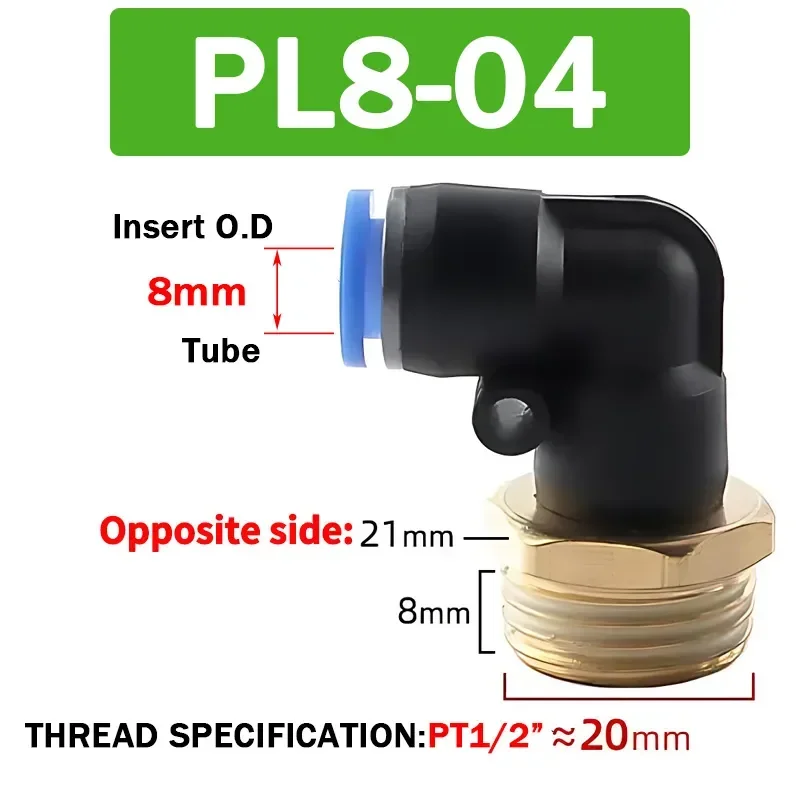

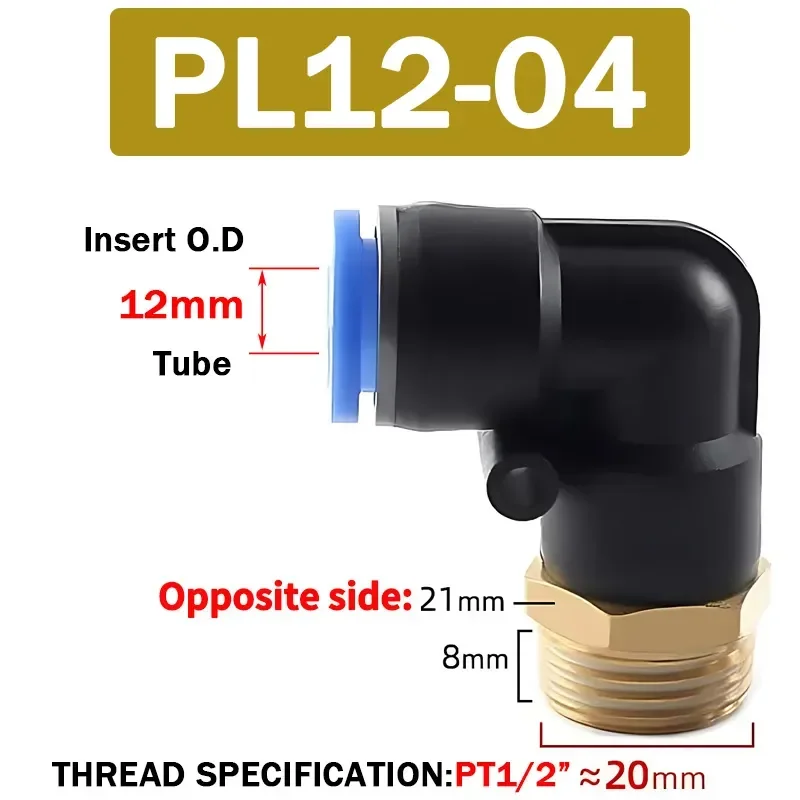

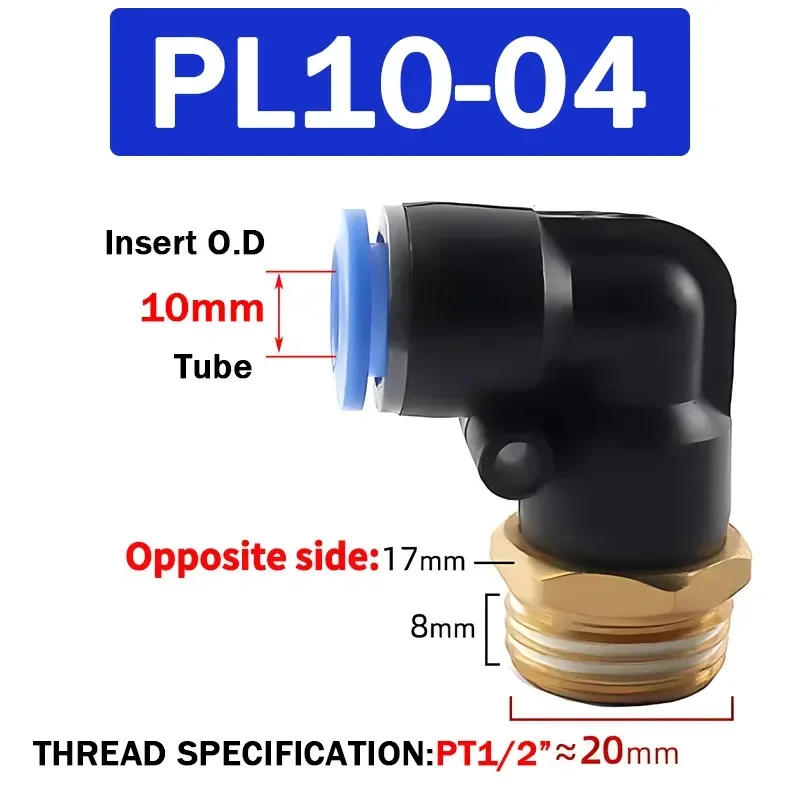

04=1/2" Threaded≈20mm
Fluid Type:Air / Vacuum
Operating Pressure:0~10.2kgf/cm2 (0~1.0Mpa)
Negative Pressure:-750mmhg (10 Torr)
Operating Temperature Range:PU / Nylon ,Polyurethane
Quick Fitting Material:Brass/Plastic
