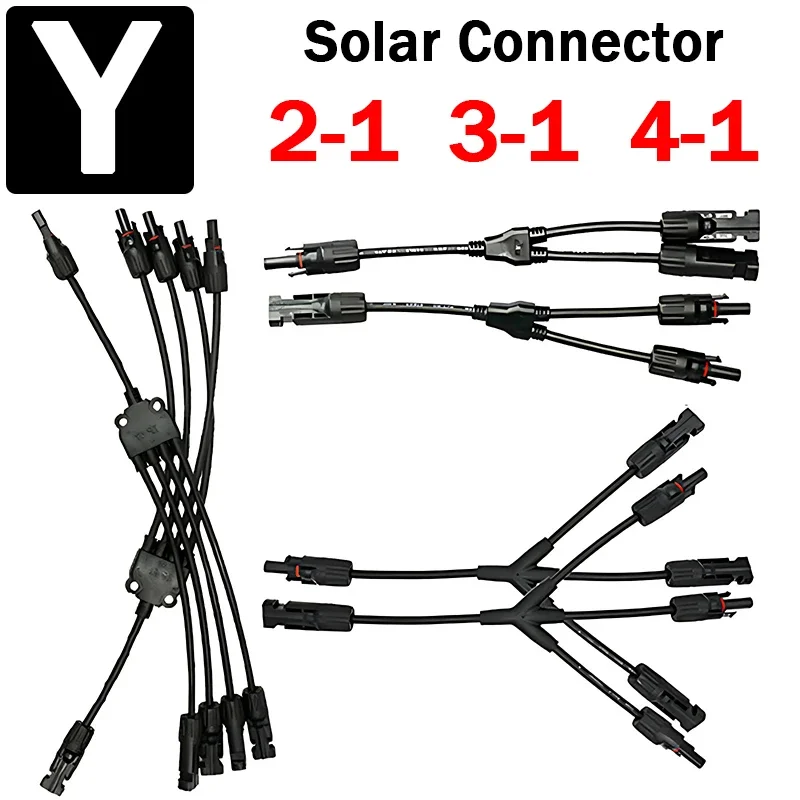

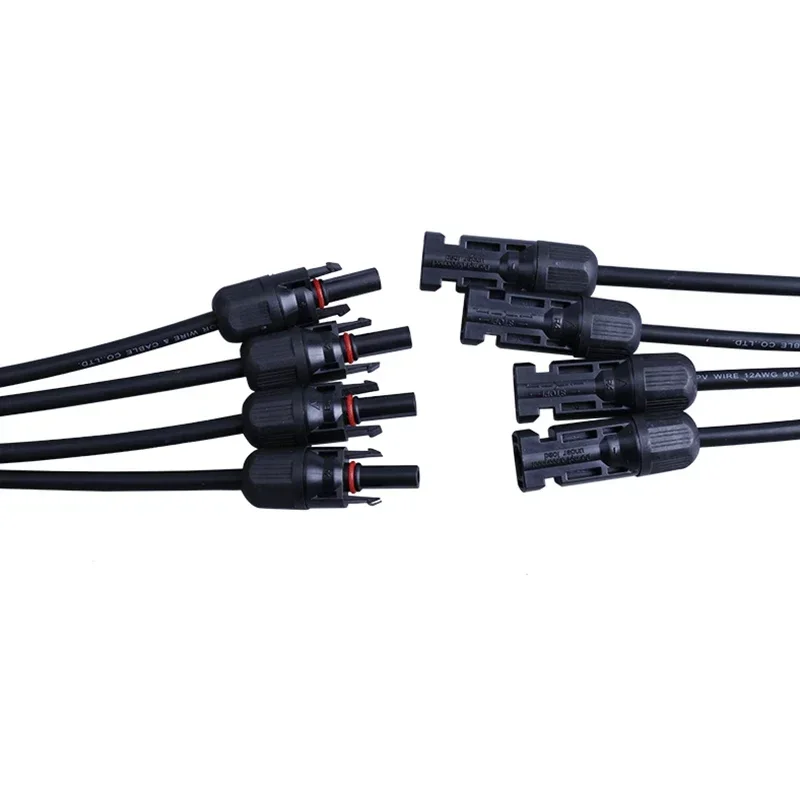

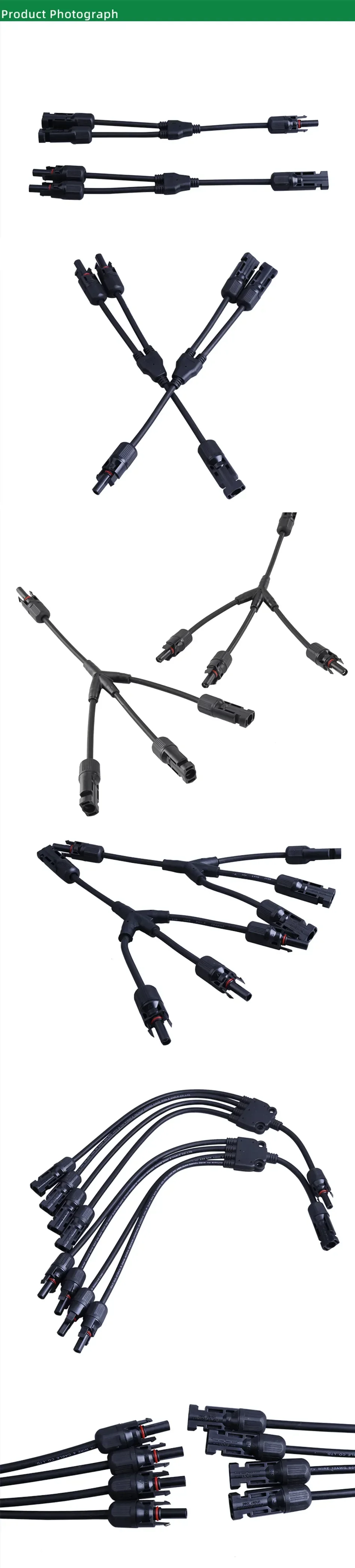

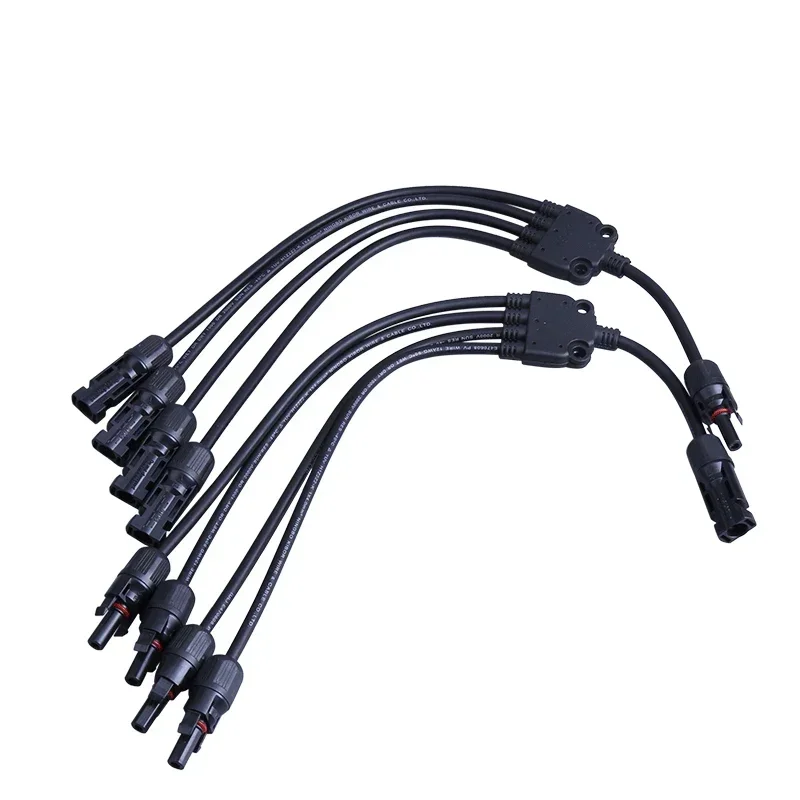

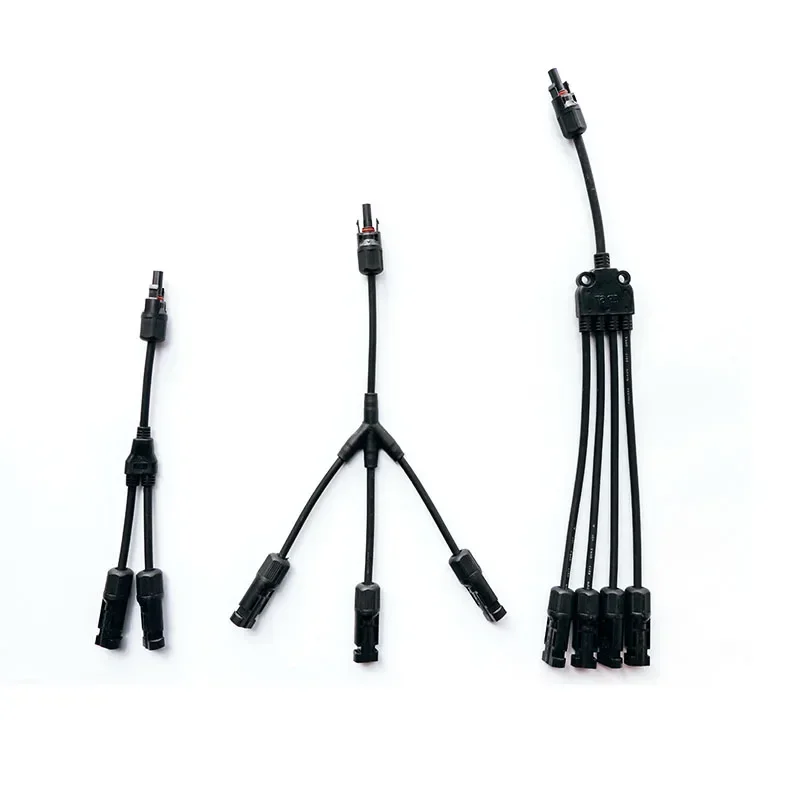

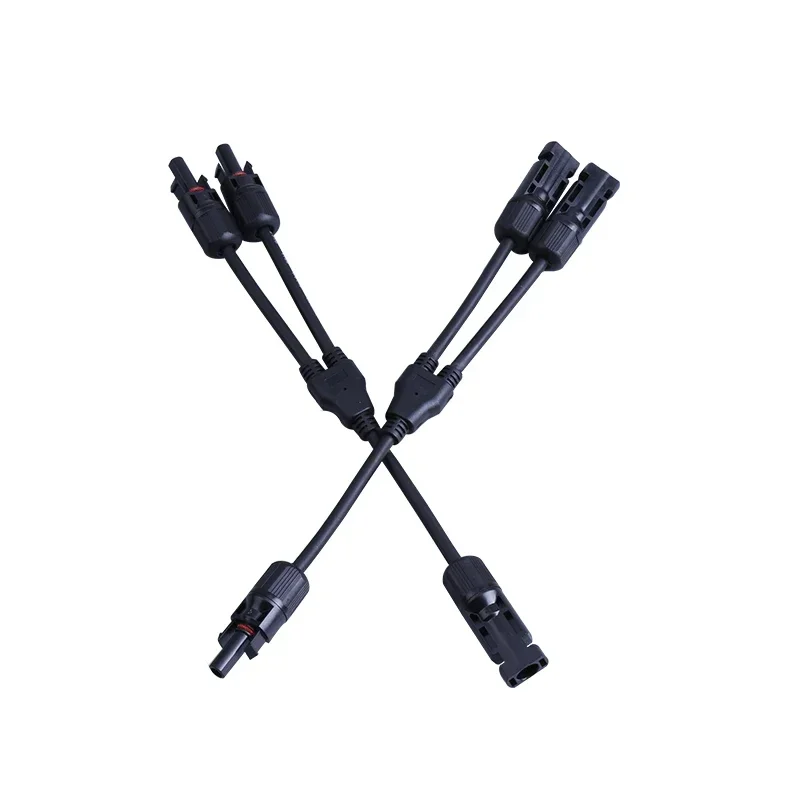

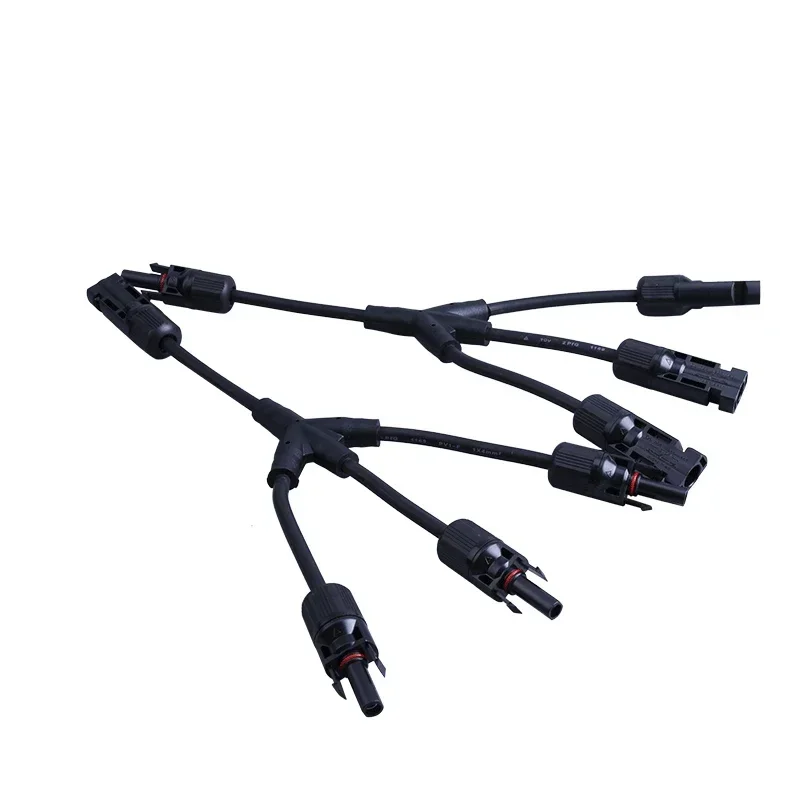

1/5/20/100Set PV Solar Connector Photovoltaic Male Female Plug Waterproof 3 4 5 Way Y-Type 1 In 2/3/4 Out Solar Kits System

Price range: $4.29 through $89.41

Weight0.010 kg
Dimensions1 × 1 × 1 cm
Brand NameNONE
Voltage220 V
OriginMainland China
High-concerned chemicalNone
EU LVD VoltageLow voltage: Below 50Vac or 75Vdc
Model NumberY Branch Connectors
Rated current20A~30A
Proof voltageTUV 6000AC (1MIN)
Rated VoltageTUV1000V DC/UL 600V DC
Suitable cable cross sections2.5mm sq~~6.0mm sq
Contact materialCopper, tin plated
Housing materialPPO
WaterproofIP67
Choiceyes
semi_Choiceyes
Compare
Add to wishlist
SKU: B9AT4X7BBTGZ Category:
Description

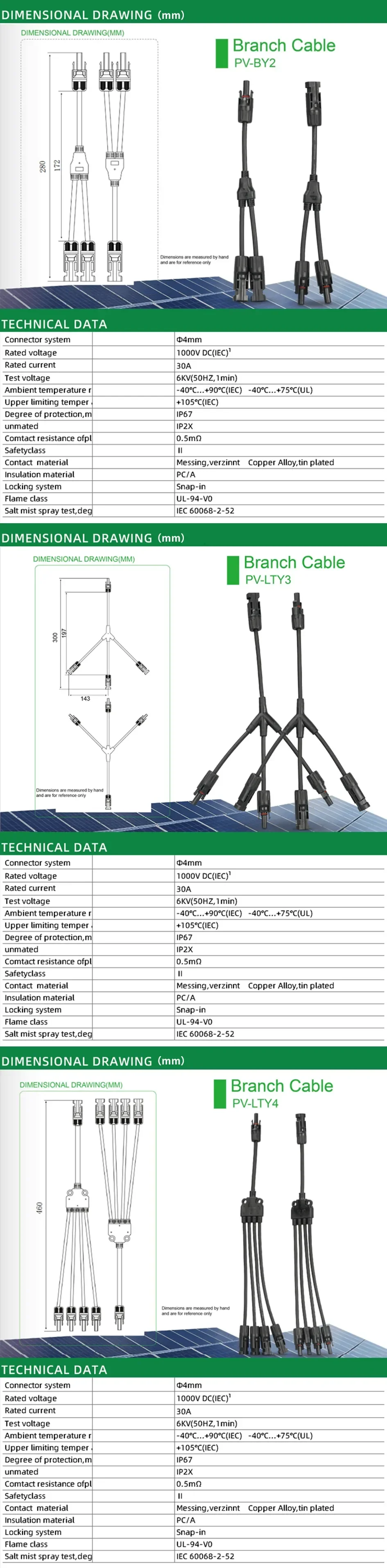

INTRODUCTION

Wiring specifications:2.5/4/6mm⊃2;
Insulation resistance:≥0.5MMΩ(T type) / 1MMΩ(Y type)
Core material:Copper tin plated
Shell material:PPO insulation material
Protection level:IP67
Temperature range:-40 ~ 105 ° C
Working current:30A
Working voltage:1000V max
